MIKE ROBOT
Biped walker using three medium motors
Built using Mindstorms® EV3 Home Edition and EV3 Expansion Set and some parts from other technic sets.
My smallest, simplest biped walker with the EV3 brick vertical.
Build instruction in PDF format and EV3 program downloads at bottom of the page.

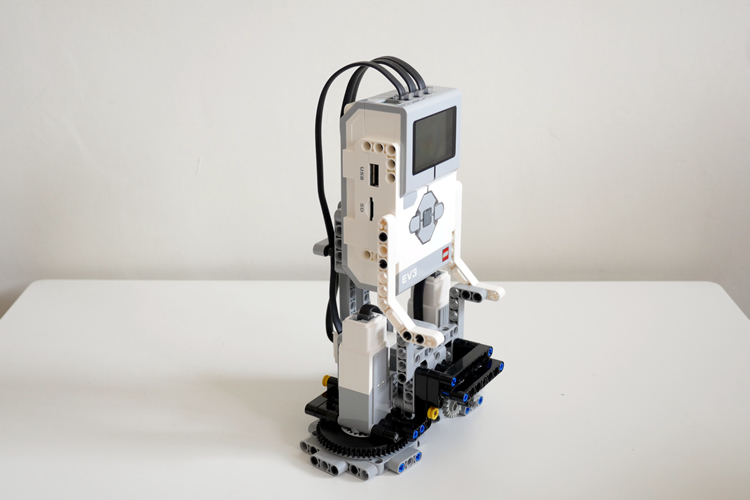

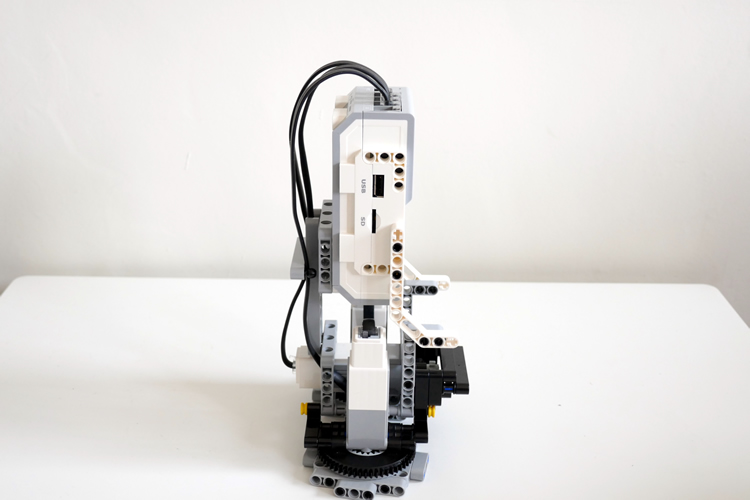

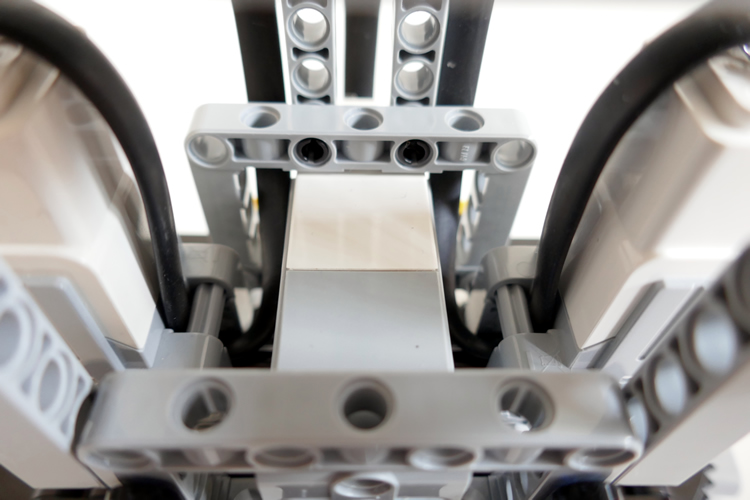

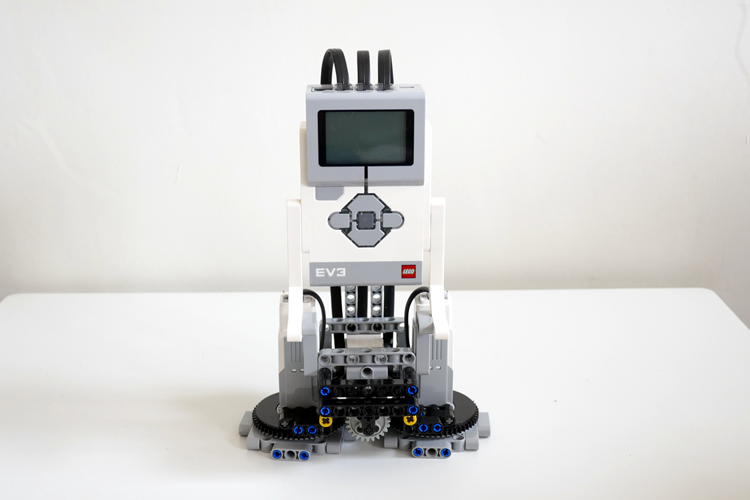

The photographs below show the routing of the cables to make them neater.
Build Instruction (PDF) Download EV3 program (Windows PC) Download

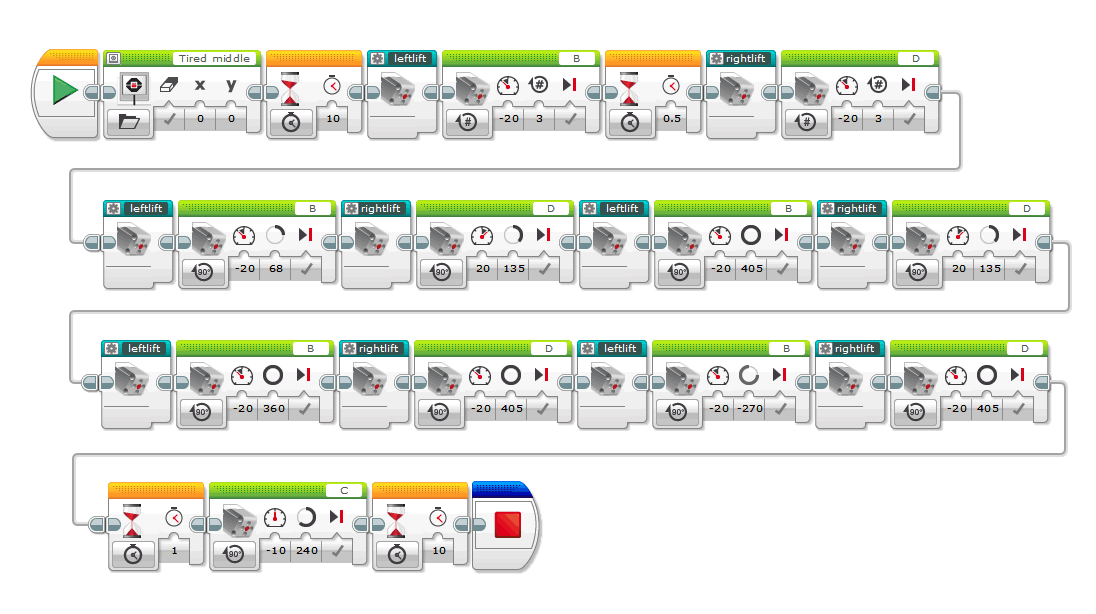

For those with Mac the program is as below

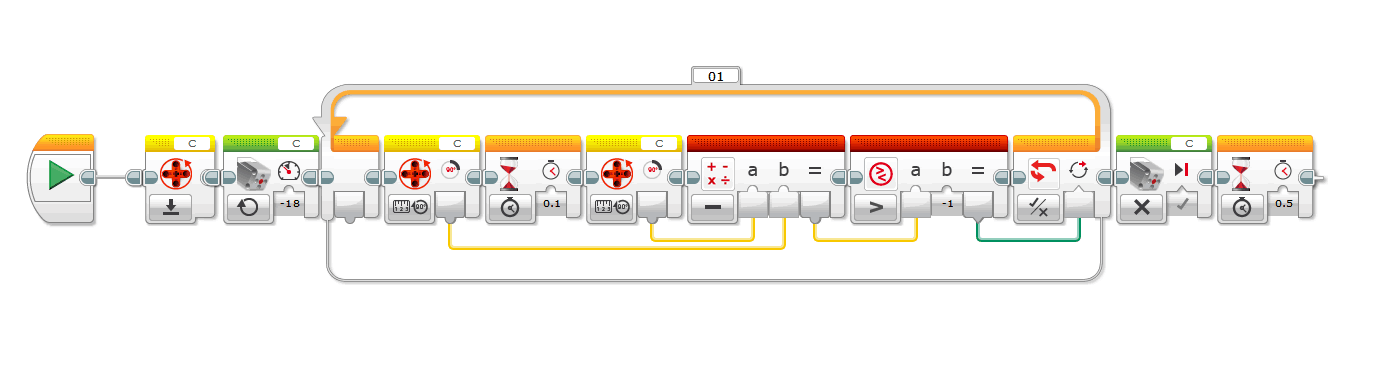

leftlift program
rightlift program
